INTRODUCTION

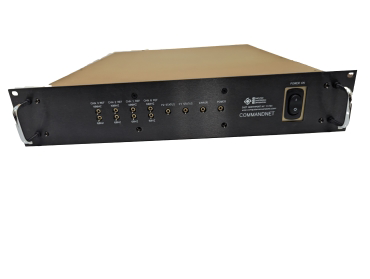

The COMMANDNET product line is comprised of fully enclosed and environmentally sealed units capable of converting signals from up to 8 analog inputs to 16 bit digital data and transmitting the resultant data over Ethernet. In addition these units are capable of receiving digital input via Ethernet and converting this data stream to 4 analog outputs. All analog I/O signals are fully transformer isolated. Due to the use of ruggedized sealed enclosures, these units are ideally suited for both military and industrial applications. Various Ethernet transmission protocols can be specified with ModBus TCP being standard.
Computer Conversions’ line of standard Synchro / Resolver / RVDT / LVDT / 4-20ma input or output type converters may be used to populate the system board. Input and Output converters may be mixed on the system board, increasing flexibility. These units also support Multi-speed or Multi-turn I /O. Specific unit functions are configurable by part number.
FEATURES
- Up to 8 Input Channels or Up to 4 Output Channels
- Synchro, Resolver, LVDT / RVDT, Etc. Input Converters
- Synchro, Resolver, LVDT / RVDT, Etc. Output Converters
- 100% Transformer Isolated
- External or On-Board AC Reference Supplies, 60Hz - 5Khz
- Weatherproof Sealed 19” EIA Rack Mount Enclosure
- Shock-Proof Bulkhead Mount Option
- Universal Power 120/240VAC
- Two Independent Ethernet Ports
- Synchro to Digital
- Resolution:10 to 16 bit
- Accuracy:+/-40 arc seconds 16 bit
- Reference Inputs:11.8Vrms, 26Vrms, 115Vrms L-L
- 47 to 10,000 Hz.
- Signal Inputs:11.8, 26, 40, 90V.L-L.
- Options: Multispeed synchro input
- Digital to Synchro
- 1.2VA through 5VA Models
- Short Circuit, Transient and Thermally Protected Outputs with Isolation
- Self-Powered off the AC Reference Input
- High Accuracy, 10-16 Bit Resolution
-
- Digital to Synchro
- (Reference Powered)
- Only +5V DC Input Power Required
- Parallel Binary Angle Input
- No +15V DC Supplies Needed
- CMOS & TTL Compatible
- 14 or 16 Bits Natural Binary Angle Data Input
- Resolver to Digital
- Resolution:10 to 16 bit
- Accuracy:+/-40 arc seconds 16 bit
- Reference Inputs:11.8Vrms, 26Vrms, 115Vrms L-L
- 47 to 10,000 Hz.
- Signal Inputs:11.8, 26, 40, 90V.L-L.
- Options: Multispeed input
- Digital to Resolver
- 1.2VA through 5VA Models
- Short Circuit, Transient and Thermally Protected Outputs with Isolation
- Self-Powered off the AC Reference Input
- High Accuracy, 10-16 Bit Resolution
- 11.8V and 26V Outputs Standard
- Digital to LVDT/RVDT
- 3V and 5V logic Compatible
- 2 or 3-4 wire output configurations
- High Drive Capability of up to 2000 ohms
- virtually Indestructible Short-Circuit Proof outputs
- 3V to 28V Reference Inputs Typical
Customization
As a leader in the motion control industry for over 50 years Computer Conversions Corporation can customize a synchro / resolver data acquisition solution, or synchro / resolver simulation solution for your specific application. Whether you're using non-standard reference signals, high output power, or require a special combination of input and ouput devices, we are here to work with your engineering staff to develop a custom solution for your company.
