DSL- DRL Series


DSL - DRL Series - Digital to Synchro, Digital to Resolver, Industry Standard Complete Modules, Isolated Reference & Signals, 3V and 5V logic Compatible, Choice of Parallel or SPI Inputs

Features:

  • High Accuracy, 12-16 Bit Resolution
  • Virtually Indestructible Outputs: Short Circuit Proof w/ Thermal Cutoff, Over-Voltage and Transient Protected, Drives High Power w/ Current Limiting
  • Commercial, Industrial-COTS, and Military Temp.
  • +12 and +15VDC Powered Models
  • Environmentals Gauranteed to MIL-STD-202E
  • Optimal Thermal Construct
  • Industry Standard Pin-Terminations
  • Transformer Isolated Reference / MIL-STD-1399
  • Low Scale factor Variation <0.05% nominal
  • High Reliability 883B-M38510 Units Available

Description:

The DSL - DRL Series are highly reliable, miniature, low profile and low cost, continuously updating Digital Synchro and Digital to Resolver (AC Sine / Cosine) Converters designed for military and industrial control applications.

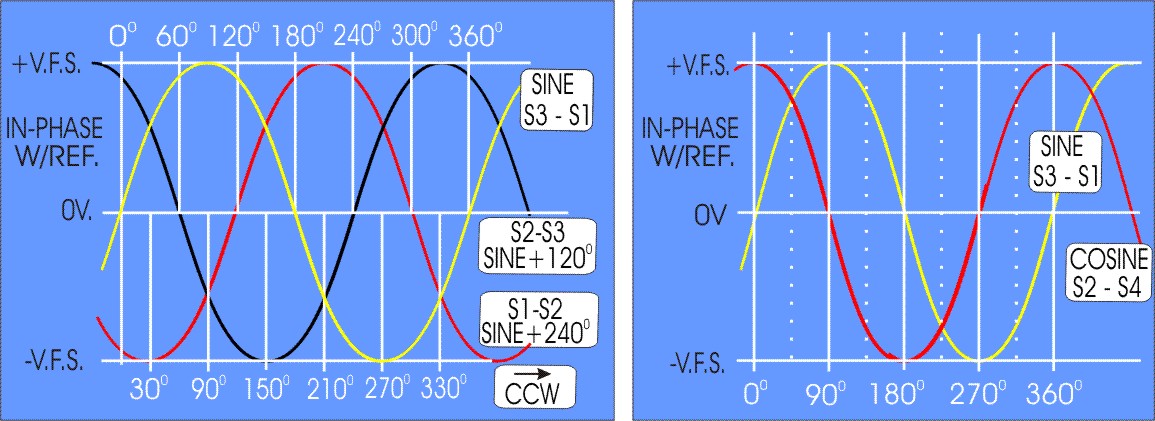

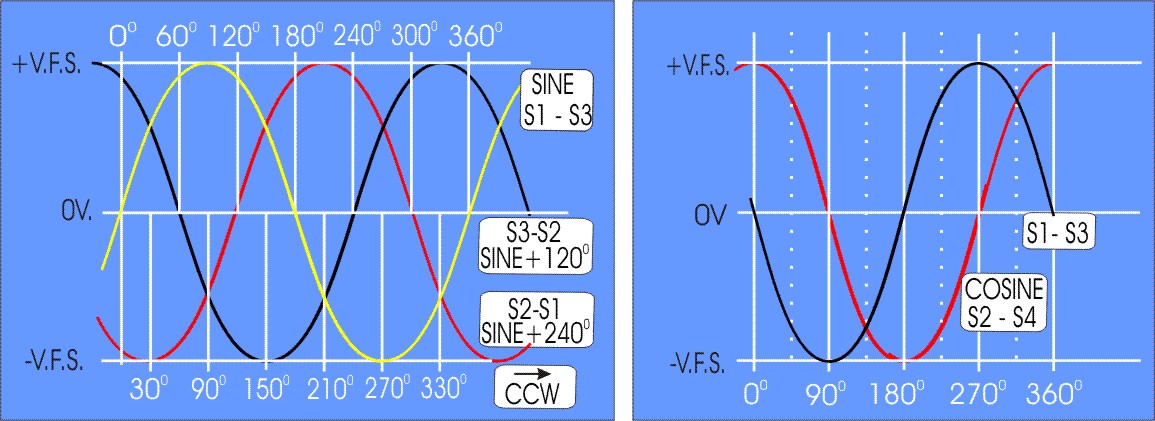

They will accept 16, 14, 12 or 10 Bits natural binary angle data (unsigned integer), and convert it into a 3 wire synchro or 4 wire resolver data format with up to 2 arc minutes accuracy.

All of these synchro and resolver converters feature virtually indestructible short-circuit proof outputs, overvoltage and transient protection, internal heat sinks, current limiting, and automatic thermal cutoff.

Complete transformer isolation is offered for all reference inputs and signal outputs to eliminate ground loops, differing potentials, and to keep any high voltage transients from affecting the host system they are employed in.

The internal; reference and signal transformers, rugged power amplifiers, and large internal heat sinks, provide complete output drive with the best density verses heat dissapation per square inch, available for DC powered converters in the marketplace.
